NeurIPS 2026 · Evaluations & Datasets Track

PCFBench

How far can large vision-language models go in physics-aware photonic inverse design?

Shengchao Chen1✉, Ting Shu2, Sufen Ren3

  • 1Australian AI Institute, Faculty of Engineering and IT, University of Technology Sydney
  • 2School of Artificial Intelligence, Shenzhen University
  • 3School of Information and Communication Engineering, Hainan University
220K
FDTD samples
18
fibre families
26
tasks
41
VLMs

Paper Code Dataset Leaderboard

01 · Overview

A physics-grounded test for VLMs on photonic design.

Photonic crystal fibres power telecommunications, sensing and high-power laser delivery, yet designing them is still expert-driven. Can vision-language models reason about photonic physics from images, or do they only pattern-match?

We introduce PCFBench, the first comprehensive benchmark for evaluating VLMs across the full photonic crystal fibre inverse-design pipeline. Its 26 tasks follow a six-dimensional hierarchy that mirrors the real design workflow, drawn from 220K FDTD-simulated samples across 18 fibre families. PCFBench evaluates both single VLMs on isolated tasks and multi-agent systems on the full perception, physics and design pipeline.

Across 41 VLMs and 13 multi-agent systems, the results reveal a persistent perception–design gap. Accurate geometry recognition fails to translate into physically grounded design decisions, even under scaling or multi-agent coordination. Closing it calls for explicit physical grounding, not visual pattern matching alone.

  1. 01

    Geometry Perception

    5 tasks

    Reads structure straight from cross-section images, from family classification and hole counting to topology analysis, pitch and hole-diameter regression, and defect localisation.

  2. 02

    Physics Understanding

    5 tasks

    Reasons about optical properties, including confinement-loss prediction at 1550 nm, application identification, mechanism keywords and dispersion regime.

  3. 03

    Text Generation

    3 tasks

    Writes geometry descriptions, answers physics questions and drafts full design reports, scored with BERTScore-F1 and a completeness rubric.

  4. 04

    Multi-modal Reasoning

    6 tasks

    Forces joint use of structure and field images through wavelength-conditioned matching and mode discrimination, in Paired and Field-only variants.

  5. 05

    Inverse Design

    4 tasks

    Turns a target into a better fibre, covering pitch and hole-diameter directions, parameter selection, closed-loop FDTD success and human-rated design quality.

  6. 06

    Code Generation

    3 tasks

    Produces runnable simulation code, parametric models and refactors, checked against an executable physics oracle.

PCFBench overview figure from the paper

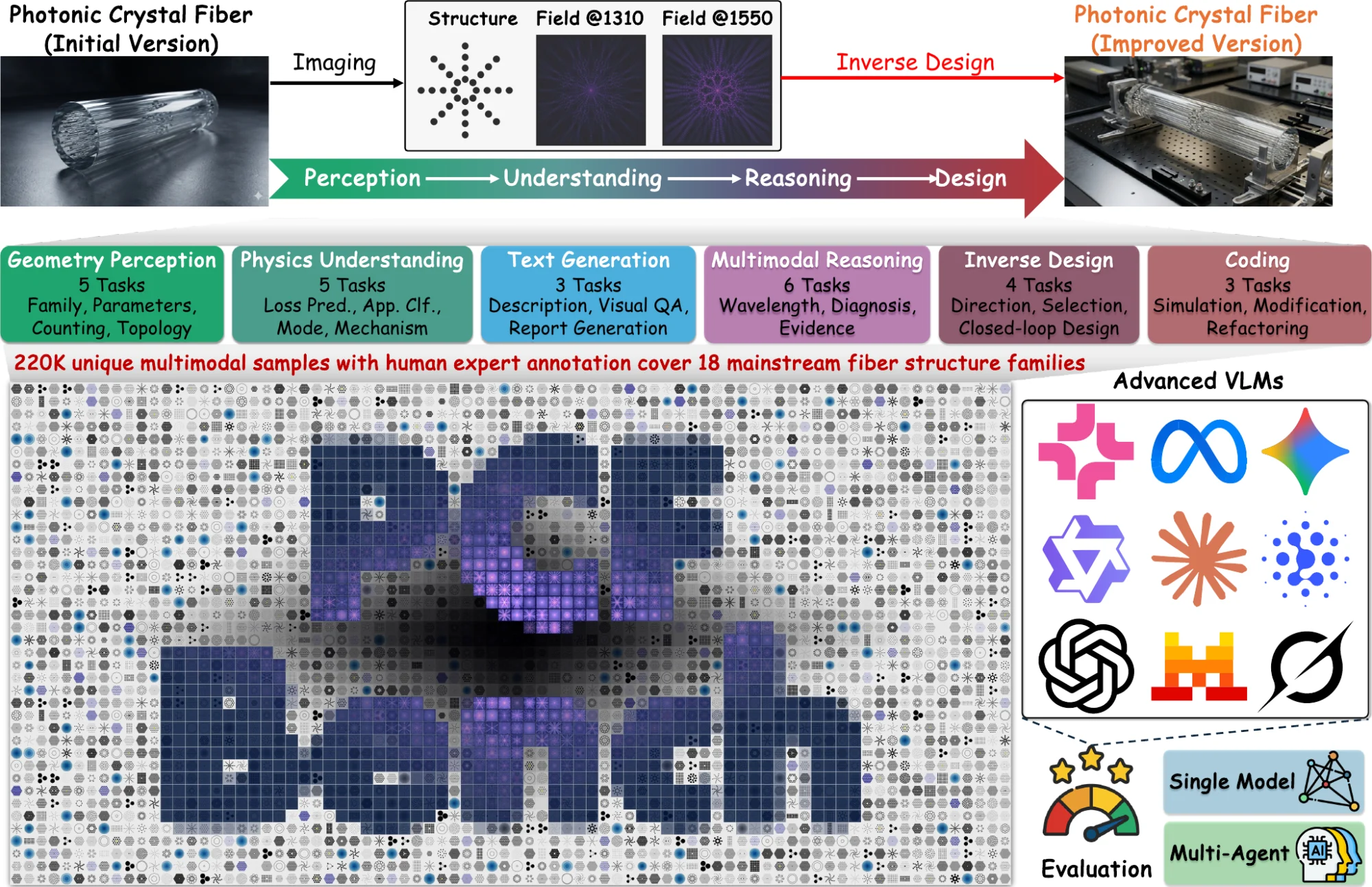

Figure 1 (paper). PCFBench evaluates VLMs across six capabilities, from low-level geometry perception to inverse design and physics-grounded code generation. Click to enlarge

02 · The task

From an image to a better fibre.

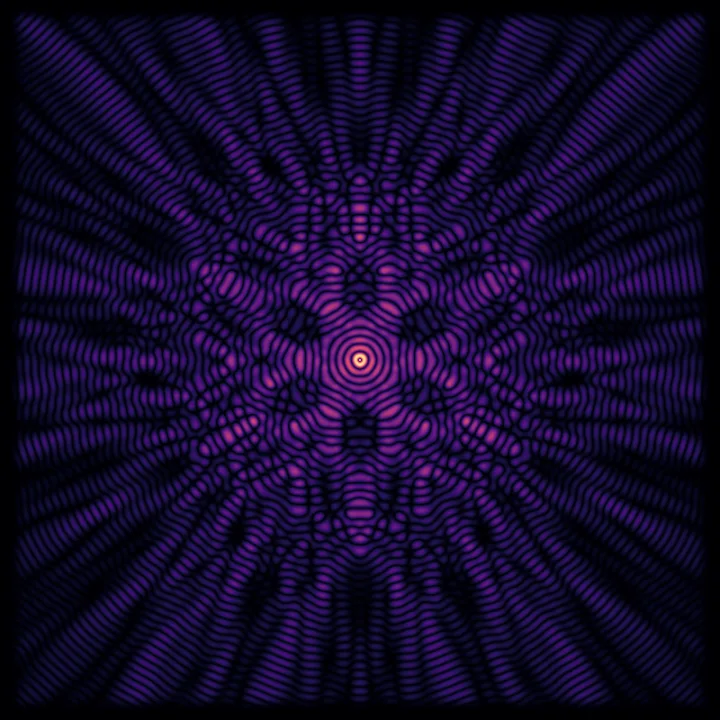

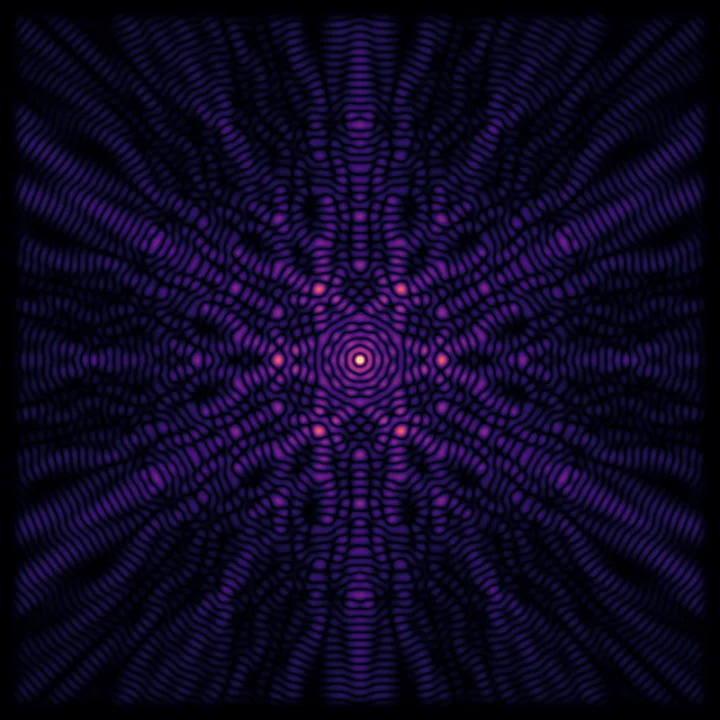

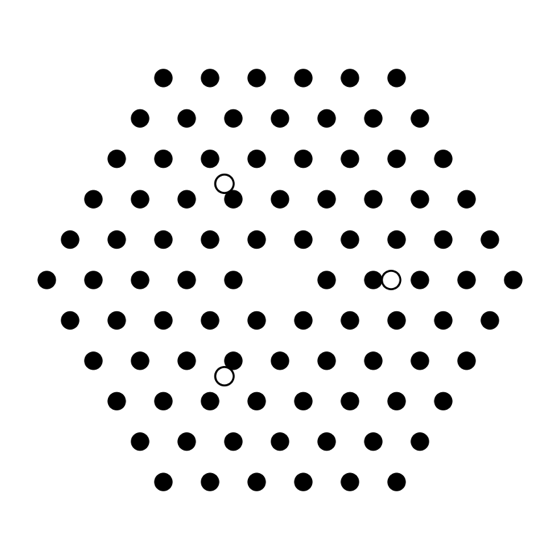

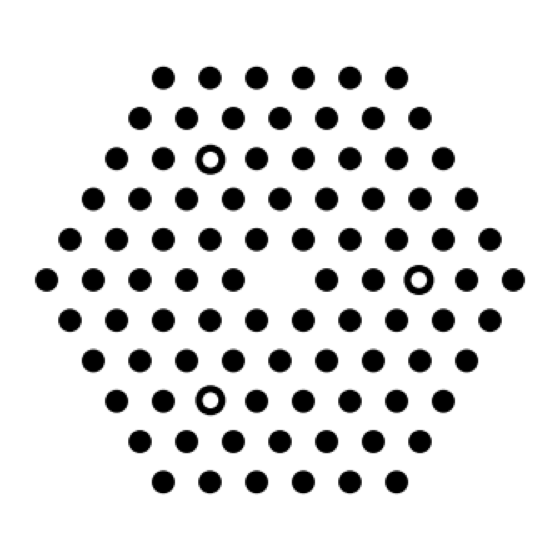

This is what every model is asked to do. Below is one real run from the PCFBench case study, replayed step by step.

    03 · Samples

    Eighteen fibre families, each a structure and its light.

    Every sample pairs a refractive-index cross-section with FDTD-simulated mode fields at 1310 and 1550 nm, plus four levels of physics-grounded annotation. Hover a plate to see 1310 nm, click it to read the sample.

    Structure
    Field · 1310 nm
    Field · 1550 nm

    Question

    Answer

    04 · Dataset

    220,000 simulated fibres, annotated in four levels.

    PCFBench construction and evaluation pipeline from the paper

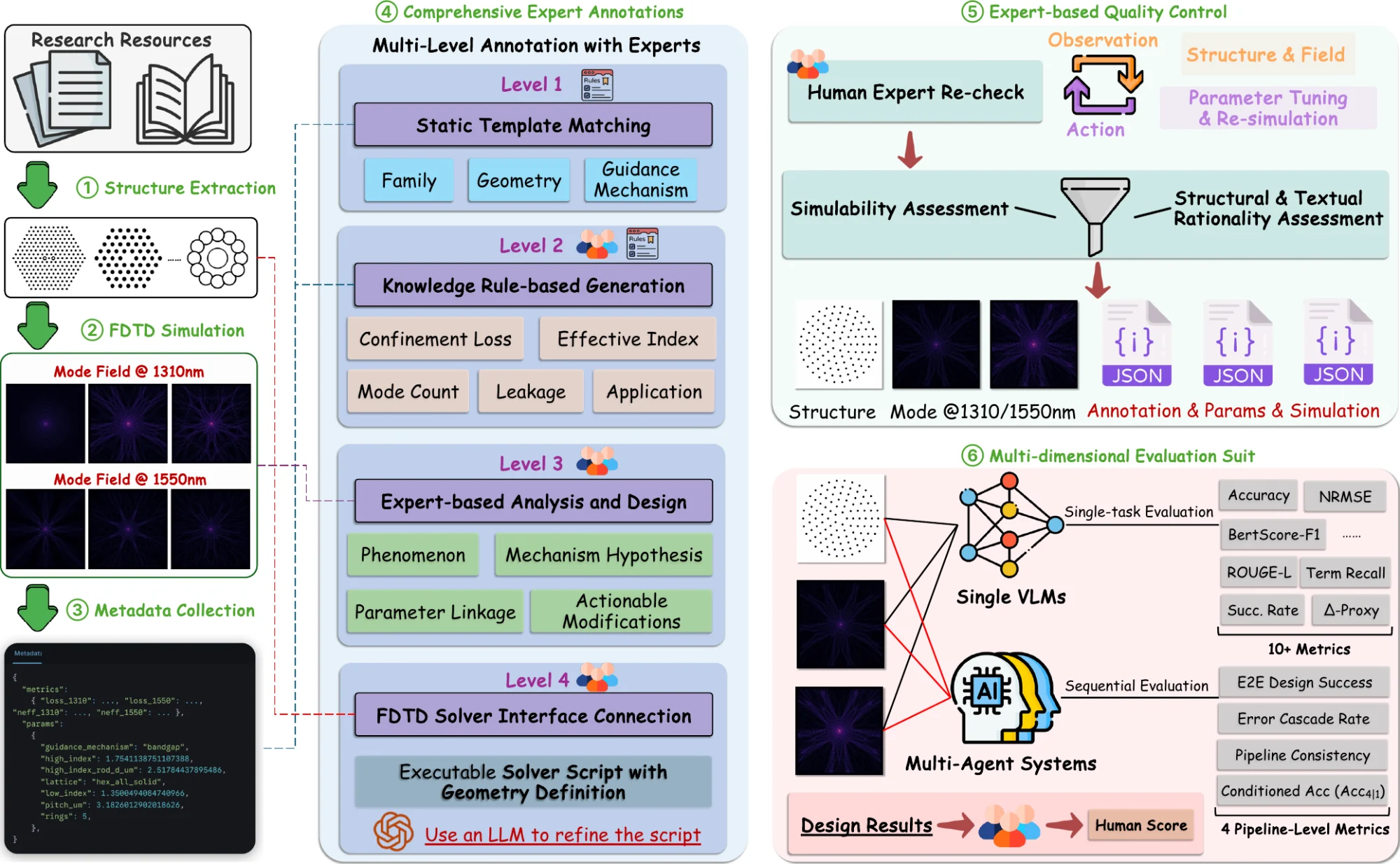

    Figure 2 (paper). Each sample goes from structure extraction and FDTD simulation to four annotation levels, from template-matched geometry facts (L1) and rule-based physics labels (L2) to expert analysis (L3) and an executable FDTD solver script (L4). Every metric is grounded in simulation truth. Click to enlarge

    Samples per fibre family

    220,000 in total across 18 families

    05 · Leaderboard

    41 VLMs and 13 multi-agent systems.

    One representative metric per task across the six dimensions, exactly as reported in the paper. Click any column to sort. Higher is better, except Loss (Log-MAE).

    1st2nd3rd per column, as marked in the paper.

    Metric glossary

    06 · Key findings

    Scale alone does not close the loop.

    Single models

    1. 1

      Perception is the easy part, design is not.

      No model reaches 50% on topology recognition, and perception correlates weakly with design success. Qwen3.5-122B-A10B leads topology accuracy yet reaches only 35.5% closed-loop success, while the smaller Qwen2.5-VL-7B reaches 63.8%.

    2. 2

      Bigger is not always better.

      Within the Qwen-VL family, going from 7B to 235B improves topology recognition by 25 points but lowers closed-loop success by 47 points. GPT-4o-mini outperforms both GPT-4o and GPT-5 on closed-loop design.

    3. 3

      Text saturates, code is near-solved.

      Geometry-description BERTScore clusters in a narrow 0.27 to 0.36 band. Models reproduce Meep scripts competently even when they cannot reason about the physics those scripts encode.

    4. 4

      Multi-modal tasks expose evaluation pitfalls.

      Some models score perfectly on Field-only mechanism diagnosis by defaulting to the majority class, then near zero on the Paired variant. The dual-prompt design turns this artefact into a diagnostic.

    Multi-agent systems

    1. 5

      The best coordination is backbone-dependent.

      MAD leads on GPT-4o-mini (CL .731) but drops to .411 on Qwen-VL-Max, where EvoMAC, the weakest method on GPT-4o-mini, becomes the best (.732).

    2. 6

      More agents do not mean better design.

      On GPT-4o-mini, two-agent AutoGen beats far larger systems, and on Gemini-3.1-Lite a single Vanilla call ties or beats five multi-agent methods.

    3. 7

      Domain decomposition helps, at the price of error cascade.

      The Sequential Pipeline surpasses generic baselines on parameter selection, but upstream perception errors propagate downstream at a cascade rate above 60%.
